ASTM B280,EN 1057,EN 12449,EN 12451,EN 12735,JIS H3300 LWC Copper Tube

ASTM B280 C12200 LWC COIL COPPER FOR AIR CONDITIONING AND REFRIGERATION
  • ASTM B280 C12200 LWC COIL COPPER FOR AIR CONDITIONING AND REFRIGERATION
  • ASTM B280,EN 1057,EN 12449,EN 12451,EN 12735,JIS H3300 LWC Copper Tube
  • ASTM B280,EN 1057,EN 12449,EN 12451,EN 12735,JIS H3300 LWC Copper Tube
  • ASTM B280,EN 1057,EN 12449,EN 12451,EN 12735,JIS H3300 LWC Copper Tube
  • ASTM B280,EN 1057,EN 12449,EN 12451,EN 12735,JIS H3300 LWC Copper Tube
  • ASTM B280,EN 1057,EN 12449,EN 12451,EN 12735,JIS H3300 LWC Copper Tube
  • LWC Copper Tube
  • ASTM B280,EN 1057,EN 12449,EN 12451,EN 12735,JIS H3300 LWC Copper Tube
  • ASTM B280,EN 1057,EN 12449,EN 12451,EN 12735,JIS H3300 LWC Copper Tube
Model No.︰-
Brand Name︰-
Country of Origin︰-
Unit Price︰-
Minimum Order︰-
Share on:

 Total 10 Related Items
Prev12345Next

Product Description

Seamlessly drawn round plain copper tubes in level-wound coils (LWC) are a cost-effective pre-material for the manufacture of heat exchangers, electrical water heaters, air conditioning and refrigeration, and cable lugs.

Coils can be supplied with or without cardboard reels depending on the customers de-coiling needs. Individually banded and safely stacked on a pallet, considering customers specific restrictions.

● Temper

Soft annealed and hard as drawn .

◆Annealed tubes are supplied to manufacturer products where they must be formed to a high degree and where fittings and bends demand.

◆Hard temper copper tubes are normally used in the manufacturer of solar heat absobers,ect.

● Packing

 Nominal weight standard for AGS level-wound coils are 100kg to 120kg.

 The reels are constructed of corrugated fiberboard and the reeled coils are palletized for ease in shipment and customer storage.

 LWCs are wrapped in plastic film.

 A wood pallet is provided.

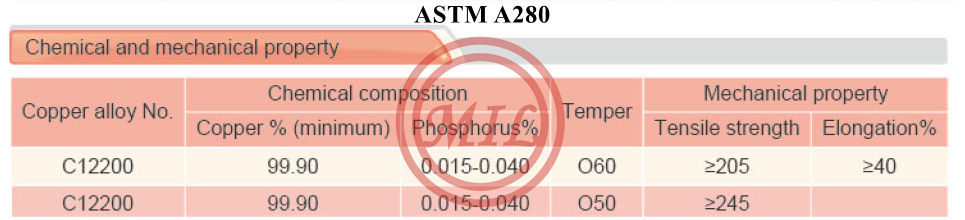

ASTM B280-Standard Specification for Seamless Copper Tube for Air Conditioning and Refrigeration Field Service
ASTM B360-Standard Specification for Hard-Drawn Copper Capillary Tube for Restrictor Applications

AS 1571 Seamless copper tubes for airconditioning and refrigeration in both hard drawn straight lengths and annealed coils
AS/NZS 3501 Copper Tubes for water, gas and sanitation in straight lengths, in half hard condition and in fully annealed coils.

BS 2871-1 Copper and copper alloy tubes for water, gas and sanitation
BS 2871-2specification for copper and copper alloys. tubes. tubes for general purposes
BS 2871-3specification for copper and copper alloys. tubes. tubes for Heat Exchangers

EN 1057 Copper and copper alloys - Seamless, round copper tubes for water and gas in sanitary and heating applications-Dimensions
EN 12449 Copper and copper alloys. Seamless, round tubes for general purposes
EN 12450 Copper and copper alloys - Seamless, round copper capillary tubes
EN 12451 Copper and copper alloys. Seamless, round tubes for heat exchangers
EN 12452 Copper and copper alloys - Rolled, finned, seamless tubes for heat exchangers
EN 12735-1 Copper and copper alloys.Seamless, round coppertubes for air conditioning andrefrigeration.Part 1: Tubes for piping systems
EN 12735-2 Copper and copper alloys.Seamless, round coppertubes for air conditioning andrefrigeration.Part 2: Tubes for equipment
EN 13600 Copper and copper alloys - Seamless copper tubes for electrical purposes

JIS H3300-2009 Copper and copper alloy seamless pipes and tubes
NF A51-102-1999 Copper and copper alloys. Seamless, round tubes for heat exchangers.

NF A51-103-1999 Copper and copper alloys. Seamless, round copper capillary tubes.
NF A51-120/IN1-2010 Copper and copper alloys - Seamless, round copper tubes for water and gas in sanitary and heating applications.
NF A51-129-1999 Copper and copper alloys - Rolled, finned seamless tubes for heat exchangers.
NF A51-128-2002 Copper and copper alloys - Seamless copper tubes for electrical purposes.

SABS 460-2003/SANS 460 Plain-ended solid drawn copper tubes for potable water





Product Image

ASTM B280 C12200 LWC COIL COPPER FOR AIR CONDITIONING AND REFRIGERATION
ASTM B280 C12200 LWC COIL COPPER FOR AIR CONDITIONING AND REFRIGERATION






LWC Copper Tube
LWC Copper Tube
