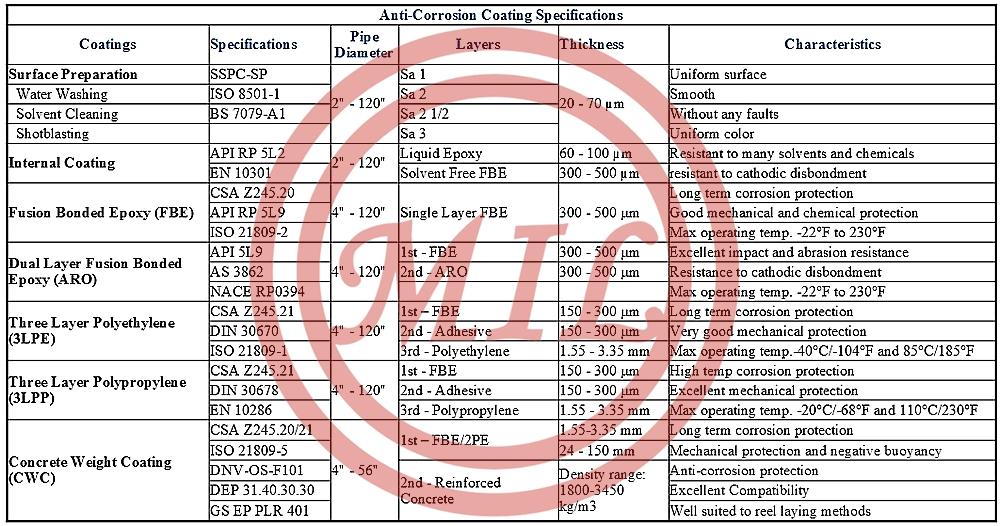

CSA Z245.21,API RP5L2,DIN 30670,DIN 30678,ISO 21809,AS 1518 3LPE/3LPP COATING

API RP5L2 Internal Epoxy Lining+DIN 30670 3LPE COATING
  • API RP5L2 Internal Epoxy Lining+DIN 30670 3LPE COATING
  • Internal FBE Lining+External 3LPE COATED PIPES
  • AWWA C205, DIN 2614, BS 534 Internal Cement Mortar Coating+ CSA Z.245.21, DIN 30670, ISO 21809-1, NFA 49-710, AWWA C215 3-Layer Polyethylene Coating
  • AWWA C200+ AWWA C210 Internal Epoxy+ AWWA C215 3LPE Coated HSAW Pipe
  • DIN 30678 3-Layer Polypropylene Coating
  • CSA Z245.21,API RP5L2,DIN 30670,DIN 30678,ISO 21809,AS 1518 3LPE/3LPP COATING
  • Bare Pipe Ready for Surface Preparation
  • Shotblasting
  • FBE,Adhesive & PE Coating
  • Water Cooling
  • DIN 30678 3-Layer Polypropylene Coating
  • AWWA C222,/BS EN 10290 •	Polyurethane Coating
  • CSA Z245.21,API RP5L2,DIN 30670,DIN 30678,ISO 21809,AS 1518 3LPE/3LPP COATING
  • DIN 30678, NFA 49-711, DNV RP F106, DEP 31.40.30.31  3-Layer Polypropylene Coating
  • Internal & External FBE Coating
  • Internal Epoxy+External FBE Coating Solution
  • CSA Z245.21,API RP5L2,DIN 30670,DIN 30678,ISO 21809,AS 1518 3LPE/3LPP COATING
  • CSA Z245.21,API RP5L2,DIN 30670,DIN 30678,ISO 21809,AS 1518 3LPE/3LPP COATING
Model No.︰DIN 30670
Brand Name︰DIN 30670,CSA Z245.20 & 21,AS 3862,API RP 5L2
Country of Origin︰-
Unit Price︰US $ 20 / SQ.M
Minimum Order︰500 SQ.M
Share on:

 Total 19 Related Items
Prev1011121314Next

Product Description



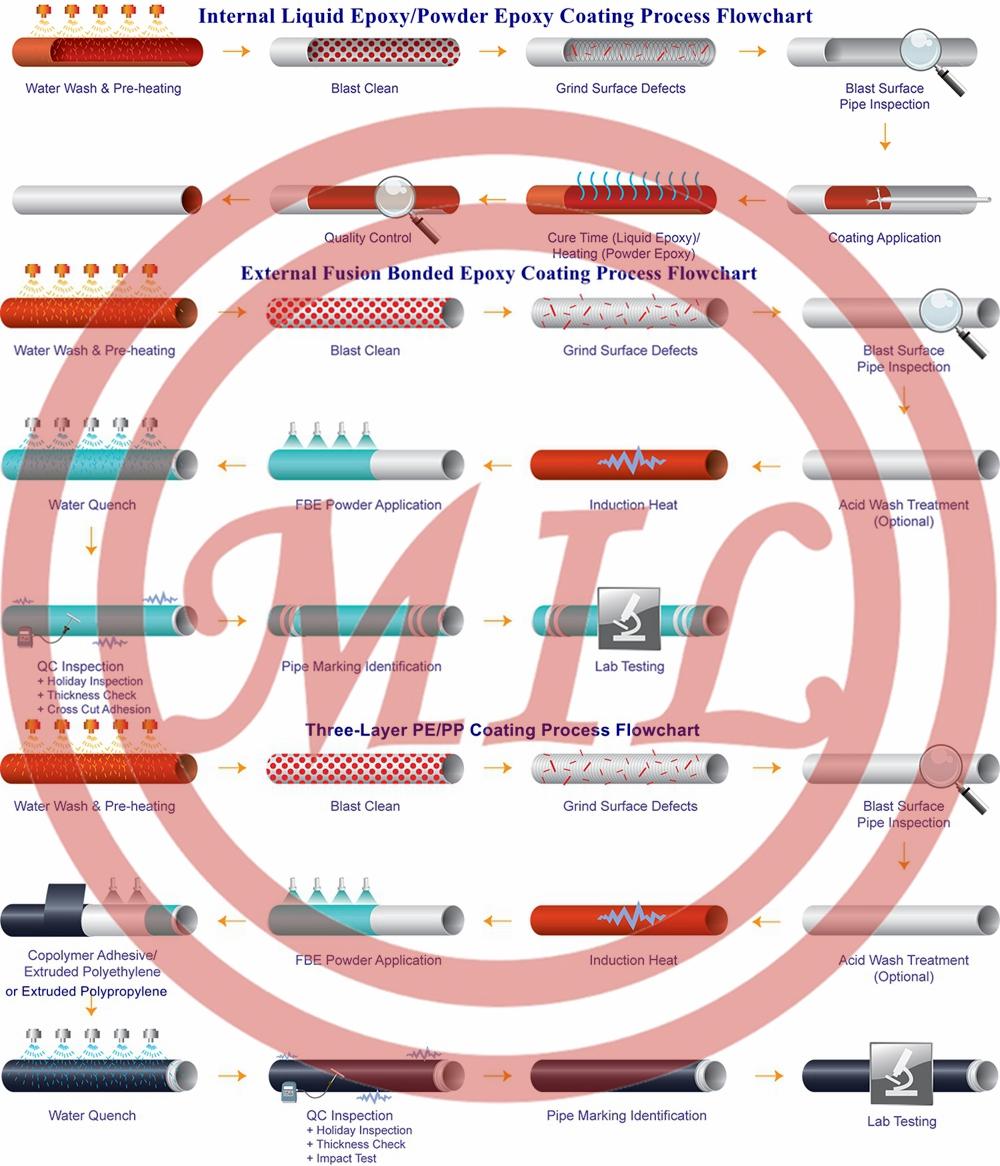

1. Coating Description:

Internal Coated Pipes (Epoxy Coated)

A spraying nozzle has been used to spray the liquid epoxy inside the pipe as per the required thickness. Before applying the epoxy paint, internal surface of the pipe is cleaned.  The liquid applied epoxy lining systems may consist of any of the following three types:

  • A two-part, chemically cured epoxy primer and one or more coats of a different two-part, chemically cured epoxy topcoat;
  • Two or more coats of the same two-part, chemically cured epoxy coating; or,
  • a single coat of a two-part, chemically cured epoxy coating.

 The typical coating thickness for gas pipelines varies between 60 to 100 μm and for water and other liquids it varies between 200 to 500 μm.

Features of Internal Epoxy Coating

  • Increase flow of gas/water by 20%
  • Suitable for Service Temperature up to 80°C
  • Excellent Corrosion Resistance
  • High Steel Adhesion
  • Low mechanical & abrasion Resistance
  • High Impermeability for water / gas
  • Low Electrical Resistance
  • Ease of cleaning the pipeline and ease of water
  • Decrease line maintenance and up keep costs



FBE Coated Pipes

Fusion bonded epoxy (FBE) coated pipes are used for prevent steel pipes from corrosion and harmful chemicals. These are thin coatings of epoxy-resin powder materials formed in a film and applied on pipes by specialised coating facilities by electrostatic spraying. These FBE coated pipes can be used in temperatures up to 85oC in dry conditions.

FBE Coating has been used as a standard in industries for protection against corrosion. FBE coatings have good handling characteristics; they are flexible and resistant to soil pressure. These are used in pipeline projects that have normal requirements and do not have harsh conditions.

A dual-layer of fusion bonded epoxy can also be used for coating of pipelines for use in harsher conditions to make it more abrasion resistant. The second layer is also made of the similar fusion bonded epoxy with both the layers being sprayed successively. Depending on the application, the dual-layer FBE can also come with an Abrasion-Resistant Overcoat (ARO), to reduce damage to pipes.

Features of Fusion Bonded Epoxy (FBE) Coating

  • Corrosion resistant and chemical resistant
  • High resistance to cathodic disbondment
  • Increases the life span of steel pipes providing a constant performance throughout its life span.
  • High bond strength and bond firmly to mild steel pipe surface.



Dual Layer FBE Coating (UV Resistant Overcoat)

It is for above ground applications in diameter range from 25 mm to 3000 mm. This coating provides excellent corrosion resistance, resistance to cathodic disbondment and resistance to UV degradation.

Dual Layer fusion bonded epoxy coatings are thermoset hardening layers of epoxy resin applied to steel pipes using an electrostatic process, which protects them against corrosion.

The two coating layers in dual layer FBE coated pipe are as follows:

Layer 1: This is the corrosion protective layer. This layer is of fusion bonded epoxy which offers very good corrosion protection. The fusion bonded epoxy has a very good bonding with the blasted steel surface.
Layer 2: This layer is a coat of fusion bonded polyester. This layer absorbs the UV radiation that causes degradation and erosion of the FBE coating.

Features of Dual FBE Coating

  • Base coat of Fusion bonded epoxy has excellent adhesion to steel & provides long term corrosion protection to steel pipelines operating over a wide range of temperatures.
  • Provides excellent resistance to cathodic disbondment.
  • Top coat of Fusion bonded polyester provides U V protection & protection from harsh weather conditions for the designed lifespan.
  • Coating has been designed for good chemical resistance under various installation conditions.
  • Ability to be stored & used in all climatic conditions.
  • Resistance to UV radiation & rain.



3LPE Coated Pipes

3LPE Coated Pipes consist of 3 layers for pipeline coating.

Layer 1 consists of Fusion Bonded Epoxy. This later provides protection against corrosion and is fusion bonded with the blasted steel surface.

Layer 2 is a copolymer adhesive which has excellent chemical bonding to the inner layer and the top layer of polyethylene.

Layer 3 is the layer of polyethylene used for protection against any physical damage of the pipes.

The 3 layer polyethylene coated pipes are the preferred choice for transmission of oil and gas around the world. It can withstand varied temperatures and environments ranging from dessert dry lands to deep underwater regions. 3LPE coated steel pipes are used for transportation of drinking water, oil and gas and other fluids. The 3LPE coated pipes can be used in the high temperatures as high as 60o C to 80 oC.

Features of 3LPE coating

  • Excellent chemical and corrosion resistance preventing steel pipes from any damage.
  • Resistance to cathodic disbondment
  • prevents any physical damages to either the pipes or the fusion bonded epoxy during handling
  • High performance characteristics and an extended life cycle



3LPP Coated Pipes

3LPP Coated Pipes consists of multilayer anti-corrosion coatings consisting of an inner layer of fusion bonded epoxy layer, the middle layer is an adhesive layer and an outer layer of polypropylene. The inner layer is used for protection against corrosion and chemical damage while the outer layer is used for protection against any physical damage in laying and transportation.

The 3 layer polypropylene coated pipes are used in oil fields where the resources are drawn from deep reservoirs and at high temperatures (100oC to 140oC). It is highly abrasion resistant and is generally used where the chances of damage are high such as Rocky Mountains or for drilling operations.

Features of 3LPP coated pipes:

  • Excellent chemical and corrosion resistance preventing steel pipes from any damage.
  • Resistance to cathodic disbondment
  • highly abrasion resistant and can withstand high temperatures.
  • high performance characteristics and an extended life cycle.



Polyurethane Coating

The aromatic polyurethanes are 100% solids materials that contain no VOCs. Polyurethane linings are typically applied at 20 mils minimum thickness; however, thicker lining applications are possible.

Features of Polyurethane Coaitng

  • Fast curing – ensures economy of high production rates and efficiency.
  • Excellent adhesion to ferrous and properly prepared steel surfaces.
  • High impact resistance
  • Effectively protects pipe from corrosion
  • Lower lining thickness is required compared to other technologies, and hence pipe design can be more efficient, reliable and economical as the wastage factor will be reduced, and pipeline capacity is higher for the same size of pipe.
  • Reduced head loss and pumping losses due to a smoother internal surface of the pipes.
  • Longer economic life as deterioration due to erosion cavitation is low.



Coal Tar Enamel Coating

The coal tar pitch, which forms the basis for the coal tar enamel (CTE), consists of stable molecules that are formed during coking operations at about 1,300°C. The fillers and coal add flexibility and strength to the product.

Features of CTE Coating

  • Water resistant — negligible water absorption and vapor transmission.
  • Stable chemical structure — resistant to acid and alkali
  • Resistant to cathodic disbonding — most pipelines are protected using impressed current or sacrificial metal anodes; CTE is resistant to the alkaline environment formed at exposed metal surfaces.
  • High electrical resistance — even after two years’ immersion in water, the electrical resistivity remains 1014-ohm cm3.
  • Adhesion — forms a strong permanent bond to the steel surface.
  • Resistant to attack by bacteria, marine organisms and root penetration.



BITUMEN COATING

To prevent rusting in pipes used for natural gas and petrol lines, this coating is applied to the outside of pipes by wrapping. All our applications are in accordance with the following applied standards: DIN 30673

Pipes can be coated externally with bitumen + reinforced glass as per DIN 30673 to maintain a higher corrosion strength.

The bitumen layer coated on the pipe surface can increase the anti-corrosion properties of the casting pipes. The coating of the equipment has the effect of flat and tidy surface, free of bubbles and the solid fixing between the coating layer and the coated body.



2. Reference Standards:

2.1 External Epoxy Coating

CAN/CSA-Z245.20 Standard for External Fusion Bond Epoxy Coating for Steel Pipe

API RP 5L9  External Fusion-Bonded Epoxy Coating of Line Pipe

AS 3862 Standard Specification for External Fusion-Bonded Epoxy Coating for Steel Pipes

AWWA C210 Standard for Liquid-Epoxy Coating Systems for the Interior and Exterior of Steel Water Pipelines

AWWA C213 Standard for Fusion Bonded Epoxy Coating for the Interior and Exterior of Steel Water Pipelines.

BP GIS 06-402 Guidance on Industry Standard for Fusion Bonded Epoxy Powder External Pipeline Coatings

DEP 31.40.30.32 Technical Specification for External Fusion-Bonded Epoxy Powder Coating for Line Pipe

NFA 49-710  Standard Specification for External Fusion-Bonded Epoxy Coating

ISO 15741 Paints and Varnishes - Friction-Reduction Coatings for the Interior of On-and Offshore Steel Pipelines for Non-Corrosive Gas.

ISO 21809-2 Petroleum and natural gas industries-External coatings for buried or submerged pipelines used in pipeline transportation systems-Part 2: Fusion-bonded epoxy coatings

NACE RP0394 National Association of Corrosion Engineers Standard Recommended Practice, Application, Performance, and Quality Control of Plant Applied, Fusion Bonded Epoxy External Pipe Coating.

NACPA 12-78 National Association of Pipe Coating Applicators External Application Procedure for Plant Applied fusion Bonded Epoxy (FBE) to Steel Pipe.

SAES-H-002 Internal and External Coatings for Steel Pipelines and Piping

09-SAMSS-089 Shop-Applied External FBE Coating

09-SAMSS-091 Shop-Applied Internal FBE Coatings

TransCanada TES-CO-FBE-GL: External Fusion Bond Epoxy for Steel Pipe Specification (CAN-US-MEX) Table 12-1 & Table 12-2 (Fusion-Bonded Epoxy Powder & Coating Qualifications).

2.2Polyethylene Coating

CAN/CSA Z245.21 External Polyethylene Coating for Pipe

DIN 30670       Polyethylene Sheathing of Steel Tubes and of Steel Shaped Fittings

NFA 49-710      External Three-Layer Polyethylene Based Coating, Application by Extrusion

DNV-RP-F106    Factory Applied External Pipeline Coatings For Corrosion Control

AS/NZS 1518     External Extruded High-Density Polyethylene Coating System for Pipes

AS 4321         Fusion Bonded Medium-Density Polyethylene coating and lining for pipes and fittings

EN 10288        Steel tubes and fittings for on and offshore pipelines - External two layer extruded polyethylene based coatings

ISO 21809-1  Petroleum and natural gas industries -- External coatings for buried or submerged pipelines used in pipeline transportation systems - Part 1: Polyolefin coatings (3- layer PE and 3- layer PP)

ISO 21809-4     Petroleum and natural gas industries -External coatings for buried or submerged pipelines used in pipeline transportation systems-Part 4: Polyethylene Coatings (2-layer PE)

BP GIS 06-403   Guidance on Industry Standard for the Application of Three-Layer Fusion Bonded Epoxy-Polyethylene Coating and Three-Layer Polypropylene Coating System for Line Pipe

DEP 31.40.30.31-Gen. TECHNICAL SPECIFICATION FOR EXTERNAL POLYETHYLENE AND POLYPROPYLENE COATING FOR LINE PIPE

IPS-G-TP-335   Material and Construction Standard for Three Layer Polyethylene Coating System

NFA 49-710    External 3 layer Polyethylene Coating

PETROBRAS ET-200.03 Engineering Specification ("Piping Materials for Production and Process Facilities") for using low density linear polyethylene in carbon steel piping, as to appendix 13 of such specification.

09-SAMSS-113  External Renovation Coating for Buried Pipelines and Piping (APCS-113)

UNI 9099       Polyethylene Coating Applied by Extrusion

2.3 Polypropylene Coating

DIN30678     Polypropylene Sheathing of Steel Tubes and of Steel Shaped Fittings

EN 10286     Steel tubes and fittings for onshore and offshore pipelines –External three layer extruded polypropylene based coatings.

NFA 49-711   External Three-Layer Polypropylene Based Coating, Application by Extrusion

09-SAMSS-114 Shop-Applied Extruded, Three-Layer Polypropylene External Coatings for Line Pipe

 2.4 Polyurethane Coating

AWWA C222 Polyurethane Coatings for the Interior and Exterior of Steel Water Pipe and Fittings

BS 5493     Polyurethane Coating

DIN 30677.2  Polyurethane Insulation of the fittings

EN 10290 PUR B3 steel pipes and fittings used in constructing sea and coastal pipelines. External coatings of liquid polyurethane and modified polyurethane - external coatings.

2.5 Polyolefin Coating

AWWA C225 Fused Polyolefin Coating Systems for the Exterior of Steel Water Pipelines

AWWA C215 Extruded Polyolefin Coatings for the Exterior of Steel Water Pipelines

AWWA C216 Standard for Heat-Shrinkable Cross-Linked Polyolefin Coatings for the Exterior of Special Sections, Connections, and Fitting for the Steel   Water Pipelines

AWWA C224 Two-layer Nylon-11 Based Polyamide Coating System for Interior and Exterior of Steel Water Pipe and Fittings

AWWA C225 Fused Polyolefin Coating Systems for the Exterior of Steel Water Pipelines

2.6 Tape Coating

ISO 21809-3  Petroleum and natural gas industries-External coatings for buried or submerged pipelines used in pipeline transportation systems-Part 3: Field joint coatings

AWWA C209 Standard for Cold-Applied Tape Coatings for the Exterior of Special Sections, Connections, and Fittings for Steel Water Pipelines

AWWA C214 Standard for Tape Coating Systems for the Exterior of the Steel Water Pipelines

AWWA C217 Standard for Cold-Applied Petrolatum Tape and Petroleum Wax Tape Coatings for the Exterior for Special Sections, Connections, and Fittings for Buried/Submerged Steel Water Pipelines

AWWA C218 Standard for Coating the Exterior of Aboveground Steel Water Pipelines and Fittings

AWWA C224 Two-layer Nylon-11 Based Polyamide Coating System for Interior and Exterior of Steel Water Pipe and Fittings

EN 12068 - DIN 30672 STANDARD-POLYETHYLENE SELF ADHESIVE TAPES

2.7 Bitumen Coating

DIN 30673  Bitumen coatings and linings for steel pipes, fittings and vessels

2.8 Coal-Tar Enamel Coating

AWWA C-203 Coal-Tar Protective Coatings and Linings for Steel Water Pipelines-Enamel and Tape-Hot-Applied

AWWA C205 Cement Mortar Protective Lining and Coating for Steel Water Pipe - 4 inch (100 mm) and Larger- Shop Applied

2.9 Concrete Weighted Coating

DNV-OS-F101 Submarine Pipeline System

DEP-31.40.30.30 Concrete coating of line pipe

ISO 21809-5 Petroleum and natural gas industries -External coatings for buried or submerged pipelines used in pipeline transportation systems - Part 5:External concrete coating.

2.10 Structure Coating

ISO 12944 Paints & Varnishes – Corrosion Protection of Steel Structures by protective paint system (parts 1 – 8)

ISO 20340 Paints and varnishes – Performance requirements for protective paint systems for offshore and related structures

ISO 15741 Paints and varnishes-Friction-reduction coatings for the interior of on- and offshore pipelines for non-corrosive gases



2.2. Internal Coating

2.2.1 Epoxy Coating

API RP 5L2 Recommended Practice for Internal Coating of Line Pipe for Non-Corrosive Gas Transmission Service.

DEP 31.40.30.35 Internal coating of line pipe for non-corrosive gas transmission service (amendments/ supplements to API RP 5L2)

AWWA C210 Liquid-Epoxy Coating Systems for the Interior and Exterior of Steel Water Pipelines

NFA 49-709 Internal can be epoxy 80 microns

NFA 49-708 Recommended Practice for Internal Coating of Line Pipe

TransCanada TES-COAT-INT: Internal Coating of Line Pipe for Non-Corrosive Gas Transmission Service (Cdn-US).

TransCanada TES-COAT-EPU: External Multi-Component Liquid Coating Systems for Below Ground Facilities (Cdn-US-Mex).

TransCanada TES-EPU-TEST: External Multi-Component Liquid Coating Systems Test Requirements (Cdn-US-Mex).

2.2.2 Bitumen Lining

DIN 30673 Bitumen coatings and linings for steel pipes, fittings and vessels

UNI-ISO 5256/87 Bitumen coatings

2.2.3 Cement Mortar Lining

AS 1281 Cement mortar lining of steel pipes and fittings

AWWA C203 Coal-Tar Protective Coatings & Linings for Steel Water Pipelines, Enamel & Tape, Hot-pap. (Incl. add. C203a-99)

AWWA C205 Cement-Mortar Protective Lining and Coating for Steel Water Pipe- 4 In. (100 mm) and Larger-Shop application

AWWA C602 Cement-Mortar Lining of Water Pipelines - 4 inch (100 mm) and Larger - In Place



3. Brands of Coating Materials

3M™: SK 134, SK6233, SK6352 Toughkote, SK 314, SK 323, Scotchkote ™ 206N, SK 226N, SK 6251 DualKote SK-6171, SK 206P, SK226P,

3M Internal Coatings: Coupon EP2306HP

DuPont: 7-2500, 7-2501, 7-2502, 7-2508, 7-2514, 7-2803, 7-2504 Nap Gard Gold 7-2504, Nap Rock: 7-2610, 7-2617 FBE Powders

DuPont Internal Coatings: 7-0008, 7-0010, 7-0014, 7-0009SGR, 7-0009LGR, 7-2530, 7-2534, 7-2509

DuPont Repair Kits; 7-1631, 7-1677, 7-1862, 7-1851

Akzo Nobel: Interzone 485,Interzone 505,Interzone 954,Internline 876 Seal Coat

Hampel: 85448,97840

Denso: 7200, 7900 High Service Temperature Coatings

Internal Liquid Epoxy: Powercrete Superflow

Product Image

API RP5L2 Internal Epoxy Lining+DIN 30670 3LPE COATING
API RP5L2 Internal Epoxy Lining+DIN 30670 3LPE COATING

Internal FBE Lining+External 3LPE COATED PIPES
Internal FBE Lining+External 3LPE COATED PIPES

AWWA C205, DIN 2614, BS 534 Internal Cement Mortar Coating+ CSA Z.245.21, DIN 30670, ISO 21809-1, NFA 49-710, AWWA C215 3-Layer Polyethylene Coating
AWWA C205, DIN 2614, BS 534 Internal Cement Mortar Coating+ CSA Z.245.21, DIN 30670, ISO 21809-1, NFA 49-710, AWWA C215 3-Layer Polyethylene Coating

AWWA C200+ AWWA C210 Internal Epoxy+ AWWA C215 3LPE Coated HSAW Pipe
AWWA C200+ AWWA C210 Internal Epoxy+ AWWA C215 3LPE Coated HSAW Pipe

DIN 30678 3-Layer Polypropylene Coating
DIN 30678 3-Layer Polypropylene Coating


Bare Pipe Ready for Surface Preparation
Bare Pipe Ready for Surface Preparation

Shotblasting
Shotblasting

FBE,Adhesive & PE Coating
FBE,Adhesive & PE Coating

Water Cooling
Water Cooling

DIN 30678 3-Layer Polypropylene Coating
DIN 30678 3-Layer Polypropylene Coating

AWWA C222,/BS EN 10290 •	Polyurethane Coating
AWWA C222,/BS EN 10290 • Polyurethane Coating


DIN 30678, NFA 49-711, DNV RP F106, DEP 31.40.30.31  3-Layer Polypropylene Coating
DIN 30678, NFA 49-711, DNV RP F106, DEP 31.40.30.31 3-Layer Polypropylene Coating

Internal & External FBE Coating
Internal & External FBE Coating

Internal Epoxy+External FBE Coating Solution
Internal Epoxy+External FBE Coating Solution



Related Products
API 5L,ASTM A53,AS 1163,EN 10219-1,EN 10208-1/2,DIN EN 10217,GOST 10704 ERW Pipe
API 5L,ASTM A53, AS 1163, CSA Z245.1,EN 10219-1,EN 10217-1/2/4,EN 10225 HFW Pipe
US $ 1195
API 5L,AS 2885.1,ISO 3183,EN 10208-1/2,EN 10219,DNV OS-F101,GOST 10704 ERW Pipe
API 5L,AS 2885.1,ISO 3183,EN 10208-1/2,EN 10219,DNV OS-F101,GOST 10704 ERW Pipe
US $ 1215
API 5L X60M PSL2/EN 10208-2 L415MB/DNV OS-F101 415N SAWL PIPE
API 5L,AS 2885.1,ISO 3183,EN 10208-1/2,DNV-OS-F101,EN 10217-1/3/5 JCOE PIPE
US $ 1425
ISO 3183-3/AS 2885-1/ EN 10208-2/NACE MR 0175/ISO 15156-2 L415MC / L415MCS Steel Pipe for Pipelines Transportation
API 5L,AS 2885.1,ISO 3183-1/2/3,EN 10208-1/2,DNV-OS-F101,EN 10217-5 UOE PIPE
US $ 1455

Company Profile  |  Products  |  Reference List  |  Association Membership  |  Company News  |  Quality Policy  |  HSE  |  Product Catalogue  |  Pipe Specification  |  Coating Specification  |  API(American Petroleum Institute)  |  AS(Australian Standards)  |  DIN(Deutsche Institut für Normun)  |  EN(Europaischen Normen)  |  GOST(ГОСТ)  |  NF(Norme Francise)  |  Contact Us  |  Sitemap  |  Mobile Version
Powered by DIYTrade.com
HomeContact UsSitemap
