Model No.︰API 5L,AS 1163
Brand Name︰API 5L,AS1163,ISO 3183, EN 10219 HFW Pipe
Country of Origin︰China
Unit Price︰US $ 615 / MT
Minimum Order︰20 MT
Share on:

 Total 19 Related Items
Prev12345Next

Product Description

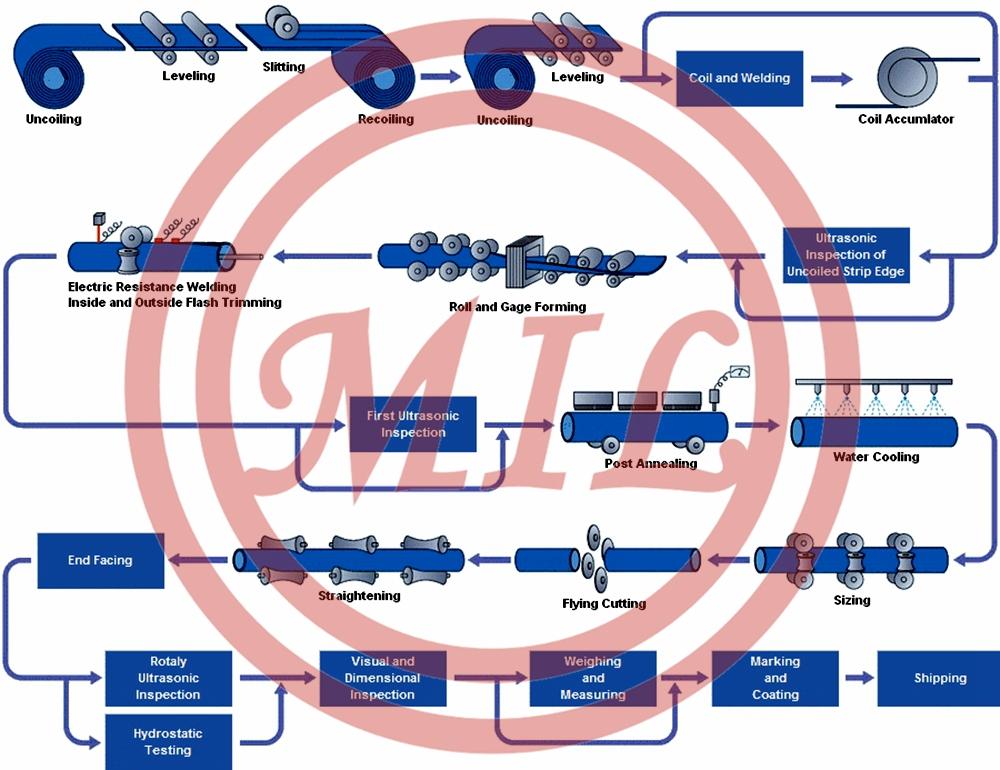

Electric Resistance Welded (ERW) Pipe

Strip is unwound from coils and side-trimmed to control width and condition the edges for welding. The strip then passes through a series of contoured rolls which progressively cold-form it into a circular shape. The edges are forced together under pressure and welded by heating the steel to temperatures between 2200° F and 2600° F using copper contacts or coil induction.

Weld flash is removed from the inside and outside surfaces of the newly-formed pipe, and the weld zone is heat treated to ensure homogeneity between the base metal and weld. The weld is subjected to in-line nondestructive testing, and the pipe then passes through a series of sizing rolls to attain its precise finished diameter. It is then straightened and cut to the desired finished length.

1.Pipe Specification:

1.1 Line Pipe

API 5L PSL1/PSL2-Gr. A; B; X42; X46; X52; X56; X60; X65; X70; X80; X90 e X100/ BM.X42M,X46M,X52M,X60M,X65M,X70,X80M– PSL1/PSL2

ISO 3183-1/2 Petroleum and Natural Gas Industries-Steel Pipe for Pipelines Transportation System-L240M,L290M,L320M,L360M,L390M,L415M,L450M,L485M,L555M,L690M

ISO 3183-3 Petroleum and Natural Gas Industries Steel Pipe for Pipelines Transportation System -L245NC / L245NCS,L290NC / L290NCS, L360NC / L360NCS, L290MC / L290MCS, L360MC / L360MCS, L415MC / L415MCS, L450MC / L450MCS, L485MC / L485MCS, L555MC

AS 1163 Cold-Formed Steel Structural Hollow Section-C250/C350L0,C350/C350L0,C450/C450L0

AS 2885 Pipelines-Gas and liquid petroleum Part 1: Design and Construction

BS 3601 Steel Pipe and Tubes for Pressure Proposes Carbon Steel: Ordinary Duties- Gr. 360,Gr. 430,

CSA Z245.1 Steel Pipe- Category I, II, III-241,290,359,386,414,448,483,550,620,690,825

DIN 1626/DIN 2470 Steel pipes for pipelines for the transport of combustion fluids and gases---St 37.0,St 44.0,St 52.0

EN 10208-1/EN 12008-3 Steel pipes for pipelines for combustible fluids---L235GA,L245GA,L290GA, L360GA

DIN 17172-2/DIN 2470 Steel pipes for pipelines for the transport of combustion fluids and gases---StE 240-7,StE 290-7,StE 360-7,StE 415-7,StE 480-7

EN 10208-2 Steel pipes for pipelines for combustible fluids---Normalized L245NB,L290NB,L360,L415NB;Thermomechanically rolled L245MB,L290MB,L360MB,L415MB,L450MB,L485MB,L555MB

DEP 31.40.20.30-Gen Line Pipe For Use In Oil and Gas Operations Under Non-Sour Conditions (Amendments/Supplements to API 5L)

DEP 31.40.20.31-Gen Line Pipe For Use In Oil and Gas Operations Under Sour Conditions (Amendments/Supplements to API 5L)

DEP 31.40.20.35-Gen Line pipe for non-critical service (amendments/supplements to ISO 3183-1)

DEP 31.40.20.37-Gen Linepipe for critical service (amendments/supplements to ISO 3183-3)

IPS-M-PI-190 Material And Equipment Standard for Line Pipe

IGS-MS-PL-001 Specifications for Pipes, Electric Resistance Welded Type(ERW)

KOC-MP-018 KOC Standard for Seamless Pipe to API 5L

KOC-MS-001 Part 1 Kuwait Material Specification Line Pipe for Sour Service

NRF-001-Pemex Steel Piping for Hydrocarbon Collections and Transportation

RP 43-1 Onshore Transmission Pipelines to BS 8010

01-SAMSS-332/01-SAMSS-333 High frequency welded line pipe

NFA 49-211/ NFA 49-411 TUE 220,TUE 250,TUE 275,TUE 290,TUE 320,TUE 360,TUE 415,TUE 450



1.2 Pipe for Structural and General Engineering Purpose

ASTM A252 Welded and Seamless Steel Pipe Piles, Foundation Piles for soil consolidation, marine wharfs---Gr.1,Gr.2,Gr.3

DIN 2460 Steel tubes for waterworks services

DIN 17120 Welded structural steel circular tubes for structural engineering purposes

DIN 17174 Welded circular steel tubes for low temperatures

DIN 17177 St. 37.8, St. 42.8

EN 10219-1 Colded Formed Welded Structural Hollow Section of Non-Alloy and Fine Grain Structural Steels-S235 JRH,S275 J2H,S275 J0H,S355 J2H,S355 J0H

EN 10224 Steel pipes, joints and fittings for the conveyance of aqueous liquids including potable water

EN 10296-1 Welded steel tubes for mechanical and general engineering purposes – TDR. Part 1: Non alloy and alloy steel tubes

JIS G3444 Carbon Steel Tubes for General Structural Purpose- STK 90,400,490,500,540

KS D3566 Carbon Steel Tubes for General Structural Purpose- STK 90,400,490,500,540



1.3.Submarine (Offshore) Pipeline System

DNV OS-F101 Submarine Pipeline Systems-SAWL 245,SAWL290,SAWL 320,SAWL 360,SAWL 415,SAWL 450,SAWL 485,SAWL 555,



2. Coating

Fusion Bonded Epoxy–  a powder epoxy thermosetting coating applied for anticorrosion protection to steel pipelines. The pipe is first blast cleaned and heated. Then epoxy powder is spray applied by electrostatic guns to melt and form a uniform layer that hardens within a minute from application. Utilizing industry accepted materials supplied by manufacturers such as 3M, DuPont, and Valspar, the facility can apply FBE in a wide range of thickness to cost effectively meet any project specifications.

Fusion Bonded Epoxy with Abrasion Resistance Overcoating (FBE/ARO) – Utilizing two completely separate powder systems, the facility can produce FBE with an ARO at unprecedented processing speeds using industry accepted materials such as 3M 6352, DuPont 7-2610, and Lilly 2040.

Fusion Bonded Epoxy with High Temperature Resistant Overcoating– Utilizing two completely separate powder systems, the facility can produce FBE with a high operating temperature resistant overcoating such as DuPont’s Nap-Gard Gold and 3M’s 6258.

Fusion Bonded Epoxy with Zap-Wrap Overcoating – The facility is capable of processing line pipe with connections and of applying the Zap-Wrap abrasion resistance overcoating to the ends of each pipe.

Three Layer Polyethylene (3LPE) – To improve anticorrosion performance and adhesion, an additional layer of epoxy primer is sprayed onto pipe surfaces prior to the adhesive layer and Polyethylene top layer application. Three Layer Polyethylene is suitable for service temperatures from 60°C to 80°C (85°C peaks). Typical coating thickness is from 1-2 mm to 3-5 mm.

Three Layer Polypropylene (3LPP) – If a wider service temperature range and high stiffness is required, adhesive and top layers, applied over primer layer, are based on polypropylene instead of polyethylene. Three Layer Polypropylene is suitable for service temperatures up to 135 °C (140°C peaks). Typical coating thickness is from 1-2 mm to 3-5 mm.



2. 1External Epoxy Coating

CAN/CSA-Z245.20 Standard for External Fusion Bond Epoxy Coating for Steel Pipe

AS 3862 Standard Specification for External Fusion-Bonded Epoxy Coating for Steel Pipes

AWWA C213 Standard for Fusion Bonded Epoxy Coating for the Interior and Exterior of Steel Water Pipelines.

EN 10289 Steel Tubes and Fittings for Onshore and Offshore Pipelines-External Liquid Epoxy and Epoxy-Modified Coating

ISO 21809-2 Petroleum and natural gas industries-External coatings for buried or submerged pipelines used in pipeline transportation systems-Part 2: Fusion-bonded epoxy coatings

SAES-H-002 Internal and External Coatings for Steel Pipelines and Piping

DEP 31.40.30.32-Gen Technical Specification for External Fusion-Bonded Epoxy Powder Coating for Line Pipe



2.2 Polyethylene Coating

CAN/CSA Z245.21 External Polyethylene Coating for Pipe

DIN 30670 Polyethylene Sheathing of Steel Tubes and of Steel Shaped Fittings

NFA 49-710 External Triple-Layer Polyethylene Based Coating Application by Extrusion

DNV-RP-F106 Factory Applied External Pipeline Coatings For Corrosion Control

AS/NZS 1518 External Extruded High-Density Polyethylene Coating System for Pipes

ISO 21809-1 Petroleum and natural gas industries -- External coatings for buried or submerged pipelines used in pipeline transportation systems - Part 1: Polyolefin coatings (3- layer PE and 3- layer PP)

DEP 31.40.30.31-Gen. Technical Specification For External Polyethylene and Polypropylene Coating for Line Pipe

IPS-G-TP-335 Material and Construction Standard for Three Layer Polyethylene Coating System

PETROBRAS ET-200.03 Engineering Specification ("Piping Materials for Production and Process Facilities") for using low density linear polyethylene in carbon steel piping, as to appendix 13 of such specification.

09-SAMSS-113 External Renovation Coating for Buried Pipelines and Piping (APCS-113)



2.3 Polypropylene Coating

DIN 30678 Polypropylene Sheathing of Steel Tubes and of Steel Shaped Fittings

EN 10286 Steel tubes and fittings for onshore and offshore pipelines –External three layer extruded polypropylene based coatings.

NFA 49-711 External Three-Layer Coating Based on Polypropylene Application by Extrusion

09-SAMSS-114 Shop-Applied Extruded, Three-Layer Polypropylene External Coatings for Line Pipe



2.4 Polyurethane Coating

AWWA C222 Polyurethane Coatings for the Interior and Exterior of Steel Water Pipe and Fittings

BS 5493 Polyurethane Coating

DIN 30677.2 Polyurethane Insulation of the fittings

EN 10290 External Liquid Applied Polyurethane Coatings



2.5 Polyolefin Coating

AWWA C215 Extruded Polyolefin Coatings for the Exterior of Steel Water Pipelines

AWWA C216 Standard for Heat-Shrinkable Cross-Linked Polyolefin Coatings for the Exterior of Special Sections, Connections, and Fitting for the Steel Water Pipelines

AWWA C224 Two-layer Nylon-11 Based Polyamide Coating System for Interior and Exterior of Steel Water Pipe and Fittings

AWWA C225 Fused Polyolefin Coating Systems for the Exterior of Steel Water Pipelines



2.6 Tape Coating

ISO 21809-3 Petroleum and natural gas industries-External coatings for buried or submerged pipelines used in pipeline transportation systems-Part 3: Field joint coatings

AWWA C209-00 Standard for Cold-Applied Tape Coatings for the Exterior of Special Sections, Connections, and Fittings for Steel Water Pipelines

AWWA C214-00 Standard for Tape Coating Systems for the Exterior of the Steel Water Pipelines

AWWA C217-99 Standard for Cold-Applied Petrolatum Tape and Petroleum Wax Tape Coatings for the Exterior for Special Sections, Connections, and Fittings for Buried/Submerged Steel Water Pipelines

AWWA C218 Standard for Coating the Exterior of Aboveground Steel Water Pipelines and Fittings

EN 12068/DIN 30672 STANDARD-POLYETHYLENE SELF ADHESIVE TAPES



2.7 Bitumen Coating

DIN 30673 Bitumen coatings and linings for steel pipes, fittings and vessels.



2.8 Coal-Tar Enamel Coating

AWWA C203 Coal-Tar Protective Coatings and Linings for Steel Water Pipelines-Enamel and Tape-Hot-Applied

AWWA C205 Cement Mortar Protective Lining and Coating for Steel Water Pipe - 4 inch (100 mm) and Larger- Shop Applied



2.9 Concrete Weight Coating

DNV-OS-F101 Submarine Pipeline System

ISO 21809-5:2009, Petroleum and natural gas industries -External coatings for buried or submerged pipelines used in pipeline transportation systems - Part 5:External concrete coating.



2.10 Marine Coating

ISO 12944 Paints & Varnishes – Corrosion Protection of Steel Structures by protective paint system (parts 1 – 8)

ISO 20340 Paints and varnishes – Performance requirements for protective paint systems for offshore and related structures

ISO 15741 Paints and varnishes-Friction-reduction coatings for the interior of on- and offshore pipelines for non-corrosive gases



3.Internal Coating

3.1 Epoxy Lining

API RP 5L2 Recommended Practice for Internal Coating of Line Pipe for Non-Corrosive Gas Transmission Service.

AWWA C210 Standard for Liquid-Epoxy Coating Systems for the Interior and Exterior of Steel Water Pipelines

AWWA C213 Standard for Fusion Bonded Epoxy Coating for the Interior and Exterior of Steel Water Pipelines

NFA 49-709 Internal can be epoxy 80 microns

NFA 49-708 Recommended Practice for Internal Coating of Line Pipe



3.2 Bitumen Lining

DIN 30673 Bitumen coatings and linings for steel pipes, fittings and vessels

UNI-ISO 5256/87 STANDARD-BITUMEN COATING



3.3 Cement Mortar Lining

AS/NZS 1516 Cement Mortar Lining of Pipelines In Situ

AWWA C203 Coal-Tar Protective Coatings & Linings for Steel Water Pipelines, Enamel & Tape, Hot-pap. (Incl. add. C203a-99)

AWWA C205 Cement-Mortar Protective Lining and Coating for Steel Water Pipe- 4 In. (100 mm) and Larger-Shop application

AWWA C602 Standard for Cement-Mortar Lining of Water Pipelines - 4 inch (100 mm) and Larger - In Place

AS 1281 Mild Steel Cement Lined piping



3.4 Coating Material Applied

3M: SK 134, SK6233, SK6352 Toughkote, SK 314, SK 323, SK 206N, SK 226N, SK 6251 DualKote SK-6171, SK 206P, SK226P,

3M Internal Coatings: Coupon EP2306HP

DuPont: 7-2500,7-2501,7-2502,7-2508,7-2514,7-2803,7-2504 NapGuard Gold 7-2504,Nap Rock 7-2610,7-2617

DuPont Internal Coatings: 7-0008, 7-0010, 7-0014, 7-0009SGR, 7-0009LGR, 7-2530, 7-2534, 7-2509

DuPont: Repair Kits; 7-1631, 7-1677, 7-1862, 7-1851

Hampel: 85448,97840

Denso: 7200, 7900 High Service Temperature Coatings

Internal Liquid Epoxy: Powercrete Superflow

Product Image






ERW PIPE
ERW PIPE



API 5L,AS 2885.1,ISO 3183-1/2/3,EN 10208-1/2,DIN 17172/2470,GOST 10704 ERW Pipe
API 5L,AS 2885.1,ISO 3183-1/2/3,EN 10208-1/2,DIN 17172/2470,GOST 10704 ERW Pipe

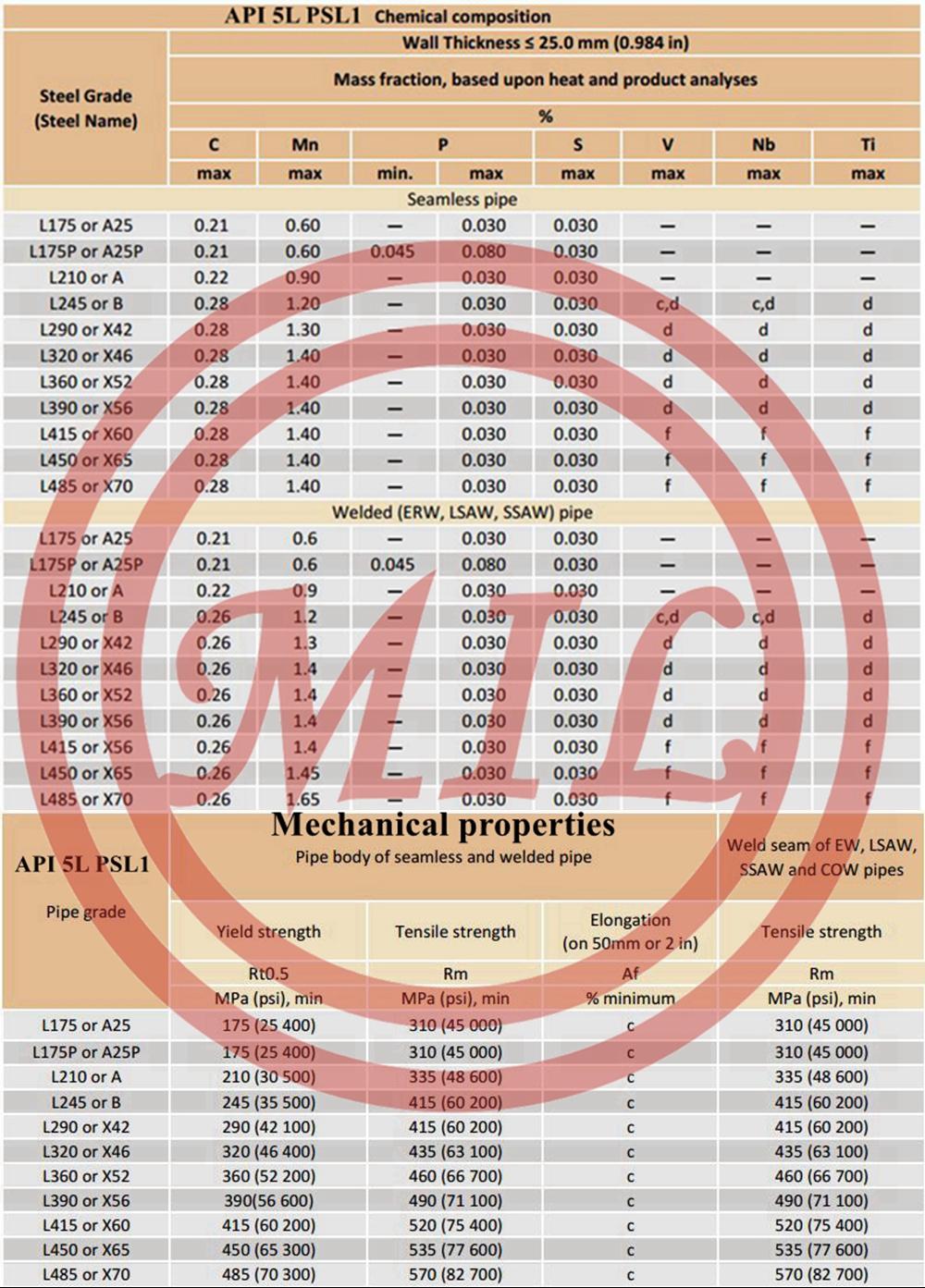

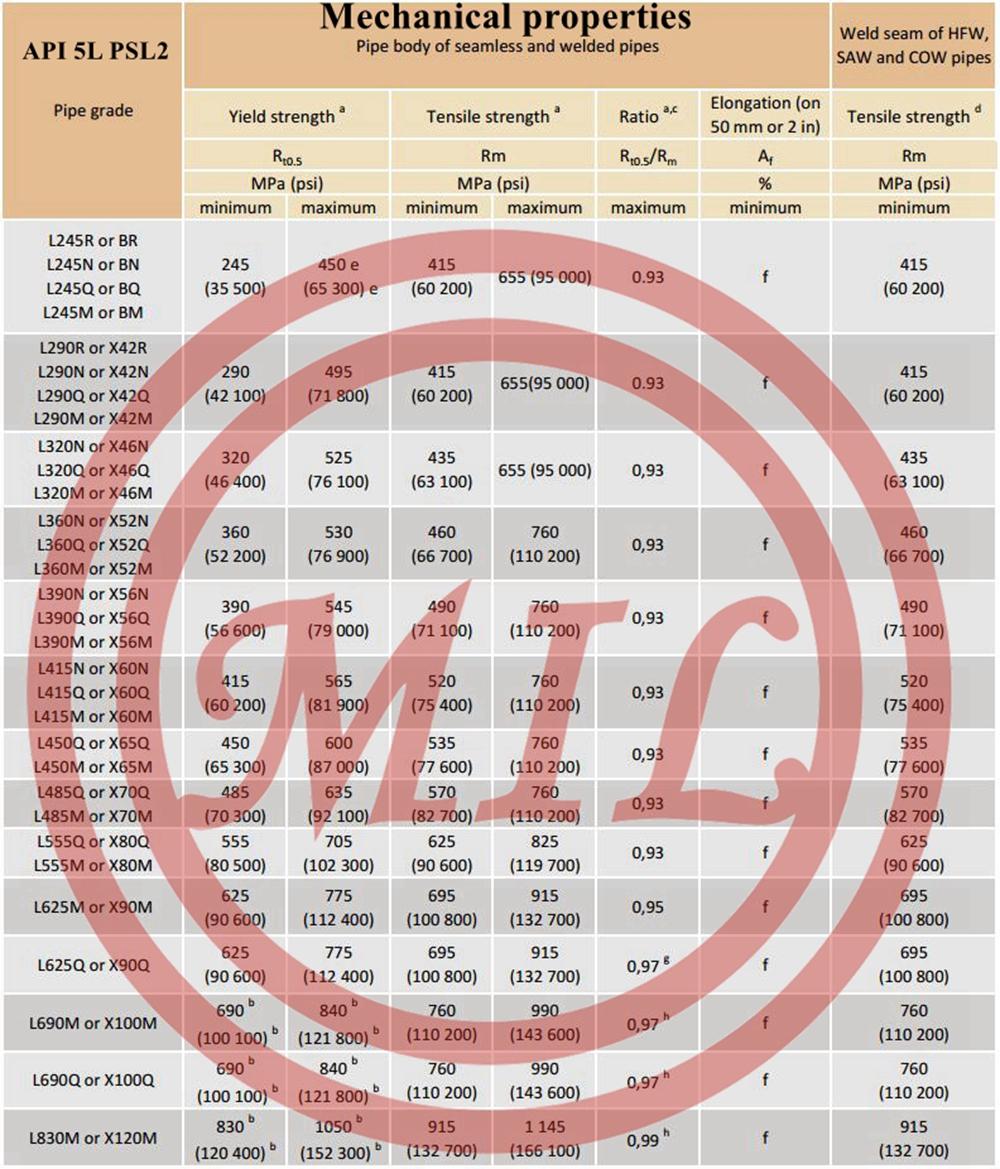

API 5L PSL1/2
API 5L PSL1/2
