Product Description

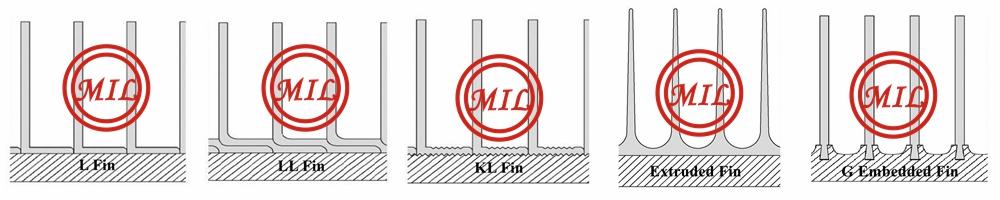

Tension Wound Fin Tubes

The Tension Wound Fin means the fins wrapped tightly around the tube and welded or stapled at the ends of tubes to hold the form. Tension Wound Fins can also be solder-coated to strength the corrosion resistance. Tension wound fin works especially prefer with fins and tubes that are use the same material.

"L" Footed Fin tubes

"L" Footed Fin has a lip at the base which is tension wound around the tube. This increases the connected area and increases the heat transfer connect area between the fin and the tube and decreases the exposed joints at the fin base.

Common Applications:  Steam Coils, HVAC Coils.

Max. Working Temperature:  150 °C

Atmospheric Corrorsion Resisitance: OK

Mechanical Resistance: Poor

Fin Material: Copper, Aluminum

Base Tube materials: Any material available, such as Carbon steel Tube, A179, A192, A210, stainless tube A269/A213 T5 T11 T22 304 316

"LL" type fin tubes also called Overlapped "L" Fin tubes

The Overlapped "L" fin design has interlocking fins that are wound together to prevent movement and separation. The fin protects the entire tubes, so the designation works well for the applications where corrosion is a factor.

This type of finned tube is often used as an alternative to the more expensive extruded type fin in corrosive environments.

Common Applications: Steam Coils, Air Preheaters.

Max. Working Temperature:  180 °C

Atmospheric Corrorsion Resisitance: OK

Mechanical Resistance: Poor

Fin Material: Copper, Aluminum

Base Tube materials: Any material available, such as Carbon steel Tube, A179, A192, A210, stainless tube A269/A213 T5 T11 T22 304 316

KL fin tubes also named knurled finned tubes

Manufactured method is exactly as the 'L' finned tube except that the base tubes are knurled before application of these fin foot. After application, the fin foot is knurled into the corresponding knurling on the base tube thereby enhancing the bond between the fin and tube, resulting in improved heat transfer characteristics.

Max. Working Temperature:  260 °C

Atmospheric Corrorsion Resisitance: OK

Mechanical Resistance: Poor

Fin Material: Copper, Aluminum

Base Tube materials: Any material available, such as Carbon steel Tube, A179, A192, A210, stainless tube A269/A213 T5 T11 T22 304,316L

Specifications:

 L Type Tension Wound Tube is combined with two different materials.

  Items

General Materials

Popular ASTM Materials

Core Tube Material

 Carbon steel, low-alloy steel, stainless steel, brass, copper, cooper-nickel alloys, aluminum bronze, nickel alloys.

1. Carbon Steel: A179, A192,SA210 Gr A1/C,A106 Gr B

2. Stainless Steel: TP304/304L,TP316/TP316L

3. Copper:UNS12200/UNS14200/UNS70600,

                 CuNi70/30,CuNi 90/10

4. Titanium: B338 Gr 2

Fins Material

Aluminum & Copper.

1. Aluminum(Alu.1100,Alu.1060)

2. Copper.

All dimensions are in Inches and specification upon your requests.

Tube OD

Fin Height

Fin Thickness

Fins per Pitch

5/8

3/8,1/2

.015/.016/ .020

6, 7, 8, 9, 10, 11, 12

3/4

5/8,1/2

.015/.016/ .020

6, 7, 8, 9, 10, 11, 12

1

5/8,1/2

.015/.016/ .020

6, 7, 8, 9, 10, 11, 12

1 1/4

5/8,1/2

.015/.016/ .020

6, 7, 8, 9, 10, 11, 12

1 1/2

5/8,1/2

.015/.016/ .020

6, 7, 8, 9, 10, 11, 12

Possible pitch of holes and pitch of rows:

No.

Tube Diameter

Pitch of holes

Pitch of rows

Pitch of fins

Material

1

Φ5/8”(15.88mm)

38.1mm

33mm

2.5~12.7mm

Copper tube + aluminum fin

2

Φ3/8”(9.52mm)

25.4mm

25.4mm

3.0~8.47mm

3

Φ3/8”(9.52mm)

25.0mm

21.65mm

3.0~6.35mm

4

Φ7mm

21mm

18.2mm

1.8~5.8mm

5

Φ7mm

21mm

12.7mm

1.8~5.8mm

6

Φ7mm

17.65mm

13mm

1.8~5.8mm

7

Φ5/8”(15.88mm)

25.4

22mm

1.5~3.0mm

Copper tube + copper fin

8

Φ3/8”(9.52mm)

25mm

12.5mm

1.5~3.0mm

9

Φ3/8”(9.52mm)

25.4mm

19.05mm

1.5~4.2mm

10

Φ3/8”(9.52mm)

25mm

21.65mm

1.5~4.2mm

SS tube + copper fin

11

Φ3/8”(9.52mm)

20.32

17.6mm

1.5~3.2mm

12

Φ5/16”(7.94mm)

25.4mm

19.05mm

1.5~4.2mm

13

Φ5/16”(7.94mm)

25.4mm

15.88mm

1.5~3.0mm

SS tube + aluminum fin

14

Φ7mm

21mm

13mm

1.2~2.5mm

15

Φ7mm

17.6mm

13.2mm

1.2~2.0mm



 G Fin Tube (or Embedded Fin Tube)
G type embedded spiral finned tube is processed from a certain width in the steel pipe and spiral groove depth, then inlays the ribbon on the steel pipe by the equipment. In winding process, as the pre-tightening force to a certain extent so the strip will be firmly in the spiral groove, to ensure there is a certain contact area between steel band and steel pipe. In order to prevent the strip spring falling off the light tube, the two ends of the steel strip need to weld onto the steel pipe. In order to set easily, there should be a certain clearance between steel belt and spiral groove. If the clearance is too small the setting process will be difficult to proceed smoothly. In addition, the steel belt of winding there will always be a certain amount of rebound, which makes it cannot very good joint among the steel belt and spiral groove bottom. Inlaid fins can be conducted on general equipment, and they cost little. With the advanced production equipment, slotting embedding technology is advanced, from stable, embedded and firm, pulled off force not less than 70 n, the allowable temperature can reach 400 ℃, has the strong ability of temperature resistance and thermal shock, widely used in petrochemical air cooler.


Extruded Finned Tube
Aluminum finned tube (steel-aluminum composite) technology parameters
Finned tube is composited with iron-aluminum or copper-aluminum tube rolling out the fin, which feathers are tightness, small heat resistance, good heat transfer performance, high strength, small flow losses, strong corrosion resistant performance, not easy to deformation and a long working lifetime in cold and hot condition,etc.
Overall rolling fin is smooth and has no burr, so it is easy to clean. It is easy to make the fin surface wet and cooled with water when makes it cold during heating air-conditioning engineering. In the situation with drying, heating and other heat exchanging, its surface is handles by anodizing, which with beautiful color and luster, and can effectively prevent surface corrosion.
Aluminum rolling finned tube is rolling as a whole by the aluminum tube, which has the feather that no contact thermal resistance, high strength, thermal shock and mechanical shock, good thermal performance, and considerable expansion heat transfer surface. The heat exchanger with this kind of finned tube is ahead of the string or around the plate ones.
According to user needs, we can produce all kinds of steel strip winding finned tube and steel aluminum composite finned tube.
As the heat transfer element finned tube works long-term in high temperature and flue gas condition, such as finned tube in the boiler heat exchanger which use conditions are as high temperature and high pressure and corrosive atmosphere, should have a high performance metrics and they are as follows:Anti-corrosion ,Anti-wear,lower contact resistance ,Higher Stability,Anti-dust stratification.

Fabrication:
The extruded fin tubes are produced by compressing an aluminum tube, or sleeve, onto the base tube. The bloom is exposed to very high pressures which essentially "grows" the fins into the final fin profiles.This process manufacture an excellent strong joint with great resistance (fin stiffness) as well as exceptional heat transfer capabilities (longevity, temperature range). The advantage of extruded fin tubes are full protection of bare tube against corrosion and fin has high mechanical strength. Extruded finned tubes provide the most stable performance over time as compared to the other fin types. The fin is rolled from an outer aluminum tube by a process using pressure to create a rolled "pressure bond" between the liner tube and fins. The aluminum fin material completely encloses the tube, except at the ends where a tube coating can be applied.

Application:
Primaily extruded finned tubes are used in high temperature conditions and corrosive atmospheric conditions, such as operating temperatures less than 300°C or off-shore applications,heat pipes air to air heat exchangers for HVAC applications,air dehumidification in air treatment plants, energy recovery in air exaust system. This kind of fin design is the least economical as compared to the other fin types, main reason due to the increased amount of aluminum used around 40% also increased labors during the manufacturing. However this increased cost can be compensated if using lower grade parent tube material.

Embedded Fin Tube

Base Tube O.D (mm)

Base Tube Thickness (mm)

Fin Height (mm)

Fin Thickness(mm)

Fin Pitch(mm)

15.88 mm ~50.8 mm

1.0 mm ~3.0 mm

6.35 mm ~ 25.4 mm

0.3 mm ~0.5  mm

2.1 mm ~ 6.0 mm

Base Tube Material

Fin Material

Tube Length (Mtr)

Carbon Steel ,Alloy Steel ,Stainless Steel

Aluminum

≤ 15Mtrs

Extruded Fin Tube

Base Tube O.D
(mm)

Base Tube
Thickness (mm)

Fin Height
(mm)

Fin Thickness(mm)

Fin Pitch(mm)

10 mm ~38 mm

1.0 mm ~3.0 mm

6.35 mm ~ 32 mm

0.8 mm ~ 4.0 mm

2.1 mm ~ 6.0 mm

Base Tube Material

Fin Material

Tube Length (Mtr)

Carbon Steel ,Alloy Steel ,Stainless Steel,
Copper Alloy

Aluminum (Standard) or Copper

≤ 15Mtrs
