Product Description
Slotted Casing/Pipes

Material:

stainless steel, carbon steel, API material, J55/K55,N80,L80,P110


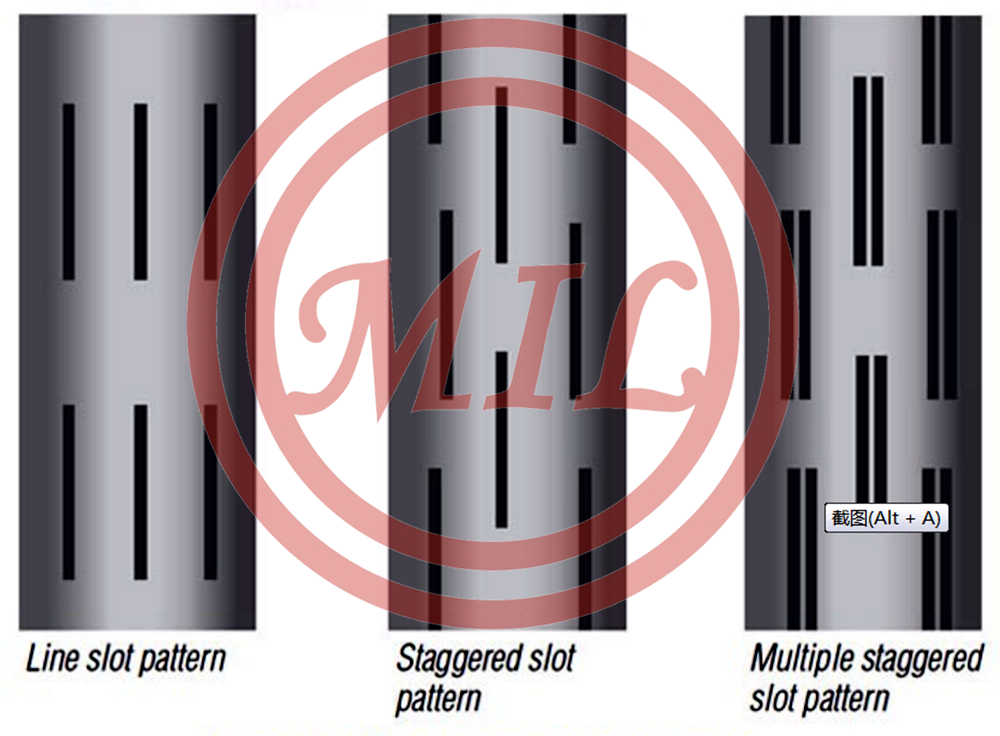

The slotted liner is mainly used to the water and oil reservation layer without much sand. It's function is to prevent rock bits from dropping into the well bore. The working principle is to allow the certain size and coming fthrough the surface with crude oil but keeping the bigger size sand being outside to form the sand bridge for anti-sand purpose. This type of product is commonly used to sand rock and catbonate reservoir, in particular, suitable for horizontal wells.Slotting pattern: line slot pattern, staggered slot pattern, multiple staggered slot pattern


Features
1. The slotted liner is a robust and cost-effective solution for long completions or low productivity wells
2. We offer straight and keystone slot type in the wide range of slotting patterns to creat the required open area
Spec.  Thickness  Unit Weight  ID  Length  Slot Length  Slot  Slot Width  Slot Tolerance  Valid Filter  Area Max.Strength
mm  mm  Kg/m  mm  mm  No./m       cm2/m      KN
60.32 5 6.84 50.3 3 80 200 0.3 ±50  48 512.54
73.02 5.5 9.15 62 3 80 240 0.3 ±50  57.6 688.55
88.9 6.5 13.22 75.9 3 80 280 0.3 ±50  67.2 995.1
101.6 6.5 15.22 88.6 3 80 300 0.3 ±50  72 1151.2
114.3 7 18.47 100.3 10 80 320 0.3 ±50  76.8 1400.4
127 7.52 22.13 112 10 80 340 0.3 ±50  81.6 167, 3.8
139.7 7.72 25.11 124.3 10 80 360 0.3 ±50  86.4 1900.2
9.17 29.48 121.4 10 80 360 0.3 ±50  86.4 2232.4
168.3 8.94 35.09 150.4 10 80 400 0.3 ±50  96 2672.95
177.8 8.05 33.68 161.7 10 80 440 0.3 ±50  105.6 2559.2
9.19 38.19 159.4 10 80 440 0.3 ±50  105.6 2940.7



Plasma Slotted Screen (PSS)

The Structural Characteristics of PSS(1) Specially designed trapezoid slot shape: narrow outside and wide insidea. self - cleaningb. The flow resistance is significantly reduced.c. Good effects of sand control.(2) The slot surface has anti-corrosion electro-chemical treatment by high frequency hardening at 8000HZ and 10000 degree during machining process.a. The slot surface has been generated a 0.1 ~ 0.2mm hardening and anti-corrosion layer.b. High resistance to wearing and corrosion.c. A longer service life than similar products.

(3) Characteristics of PSS Slot

a. High dimension accuracy of slotted width

Item

1

2

Slot length

Slot width

0.15~0.5(mm)

0.6~4.0(mm)

60~120(mm)

Tolerance

±0.03(mm)

±0.10(mm)

±1.0(mm)

b. Slot surface is smoother than other similar products'c. No cutting holes at the slot end.   (4) Size specification and application scope of PSSThe size specifications of PSS are shown in table 1.

1

Outside diameter of the liner (mm)

φ50~φ219

2

Length of the liner (mm)

1000~12000

3

Outside pipe of the slot width (mm)

0.15~0.60(Tolerance±0.03), 0.60~4.00(Tolerance±0.1)

4

inside pipe of the slot width (mm)

Outside pipe of the slot width +0.1

5

Slot length (mm)

60~120, Tolerance ± 1.00

6

Slot quantities per circle

Per customer request

7

The distance between the adjacent slots (mm)

Per customer request

 (5) Application scopeIt can be applied to sand-control completion of horizontal well, side well drilling, branch well, and gravel pack well completion.

1. Base Pipe: API 5CT Tubing, Casing
2. Steel Grade: API 5CT J55 K55 N80 L80 P110
3. OD: 2-3/8''-7''
4. Length: R1 R2 R3
5. Slot width: 0.15-4mm  ±0.03mm
6. Slot length: 60-120mm ±1.0mm
7. Slots around circumference:as per the order
8.The distance between adjacent slots:as per the order
9.Slot Surface: Hard-quenched

Standard Met︰7305.20.00 CASING, electric resistance welded, conforming to American Petroleum Institute Specification 5CT (API 5CT), Grades C-75 OR L-80 OR N-80 OR C-90 OR C-95 OR S-95 OR T-95 OR P-110 OR Q-125 OR V-150, with OR without connectors, having BOTH of the following:
(a) nominal outside diameter NOT less than 508 mm;
(b) wall thickness NOT less than 12.7 mm
